Designed, built, and extensively "ear-tested" by long-time recording industry veterans, the A-Designs Pacifica takes its sonic signature and name from the revered Quad Eight mixing console. However, the A-Designs Pacifica has a sound and character all its own.


Purchase by Phone (VISA/MC):

Find a Dealer

Handmade in the USA

Full Warranty for 1 year

Great Customer Service


"Big Iron" Sound of the 70's - Unbelievable Bandwidth

The 1970s was a time of great change in pro audio. The introduction of solid-state electronics led to an explosion in  development and a very different sound than the tube gear of previous decades. The recording console in a high-end 1970s  studio was likely a Neve, an API, or a Quad Eight. These companies set the standards for audio quality – with a unique  sound firmly imprinted on the popular recordings of the era.

Designed, built, and extensively “ear-tested,” by long-time recording industry veterans, the A Designs Pacifica takes its sonic  signature and name from the revered Quad Eight mixing console. However, the A-Designs Pacifica has a sound and  character all its own. Praised by top professionals for having the depth of a Neve, the midrange of an API and the high-end  of a Massenburg, the Pacifica has firmly established itself as the go-to preamp for an impressive list of Grammy-winning and  platinum-selling engineers and producers.

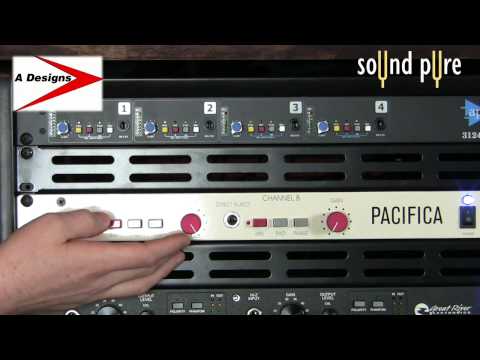

The streamlined feature set of the Pacifica delivers exactly what an audio professional needs to quickly record high-quality  tracks. Paying homage to the color scheme of the Quad Eight Pacifica console, the hand-crafted A Designs Pacifica sports a  rich, cream-colored finish with solid feeling red metal gain knobs, a red +48V phantom power push button with red LED  indicator, and grey push buttons for phase reverse and –20dB pad - all giving the Pacifica a look reminiscent of California  girls, beach boys, and classic Woodies.

It also has two front-panel Hi-Z instrument inputs, but - just like a classic Woody - it’s what’s under the Pacifica’s hood that  gives the Direct Inputs their distinctive sound. Unlike other preamps, Pacifica’s DIs are routed through the input transformer,  passing signal through two transformers for added depth and richer tone….and these aren’t just any transformers! They’re  custom-designed input and output transformers built by Tom Reichenbach of Cinemag (whose father Ed built the  transformers for the original Quad Eight desks). The output transformers are custom wound and share the same design as  those found in the original Quad Eight.  The input transformers, however, are pure, proprietary A-Designs.

Another major component of Pacifica’s stellar sound is its extreme bandwidth, ranging from way down at 9Hz all the way up  to 101kHz with  <1% distortion!  Along with the custom transformers, the linear response down below 10Hz provides the big,  punchy sound for which the Pacifica has become a contemporary classic. It also provides harmonic content well above the  range of human hearing, reducing in-band phase shift for more realism, along with the added benefit of delivering more  harmonic information to work with...turning your EQ into a creative tool rather than a corrective one.

While some may believe the glory days of recording are over, Pacifica is living proof that they’ve never left us, and better  days are still ahead! Put an A-Designs Audio Pacifica in your rack, and hear the difference.

Only $2,350.00



Two-channel, solid state preamp with two front-panel Hi-Z inputs.
Captures the sound quality of the legendary Quad Eight Pacifica console with even more presence and high-end.
Very warm and full tone without being dark; wide bandwidth with a sweet top end.
Custom-wound Cinemag input and output transformers.
Input transformer: A-Designs proprietary input transformer with unique winding.
Output Transformer: A-Designs proprietary alloy using the same massive design as the original Quad Eight.
72dB of quiet gain, great for use with ribbon mics.
Unique D.I. design sends signal through the input transformer for two transformers in the signal path.
Balanced XLR I/O.
Phase reversal (each channel).
-20dB pad (each channel).
+48V phantom power (each channel).
Solid construction, handmade in the USA.
Frequency response: 9Hz-101KHz.
Input impedance: 1500 ohm
Gain range: 72dB.
Noise (EIN): -128dB.
Phantom power: Switchable 48V.
Mic input phase: Switchable 0 -180°.
Instrument Input Jack 1/4''
Output: Balanced XLR
Distortion: Less than 1%.
Power requirements: 100/120/230 VAC - 23W.
Dimensions: 19'' x 1-3/4'' x 10''
Weight: 11 lbs.
Shipping weight: 12.5 lbs.
